7.5KW 200m/Min Toilet Tissue Making Machine Air Shaft 3HP

Product Categories
SYM Shenzhen Yushengda Machinery & Engineering CO.,LTD
Contact Now

7.5KW 200m/Min Toilet Tissue Making Machine Air Shaft 3HP

  • 1
  • 2
  • 3

Brand Name : YU SHENG DA

Model Number : YD-IP-I

Certification : CE

Place of Origin : CHINA

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 10 Sets/Month

Delivery Time : 40 Days after Down Payment

Packaging Details : Wooden Case

Speed : 200m/min

Raw Parent Roll Width : 1400-3500mm

Automation : Full Auto

Voltage : 380V, 50 HZ OR CUSTOMERIZED

Dimension(l*w*h) : 6200*2200*2200mm

After-sales service provided : Engineers available to service machinery overseas, Video technical support, Online support, Field maintenance and repair service, Field installation

Condition : NEW

Warranty : One year

Power(w) : 7.5KW

Product type : Toilet Paper Making Machine

Contact Now

Automatic Small Toilet Tissue Paper Making Machine Can Do Soft Tissue Paper Price
Description

Fully automatic toilet tissue paper roll production line making machine can slit and rewind the single ply tissue into two, three or four plies tissue, for the production of paper towels, napkin paper, boxed tissue, facial tissue and so on.

The machine features good mechanical performance, compact structure, pneumatic parts, stable running, and easy operation. The finished products have a compact structure.

Machine Details The machine can according to the customer requirement to customization.
Composition Of Production Line: This product line include three parts :

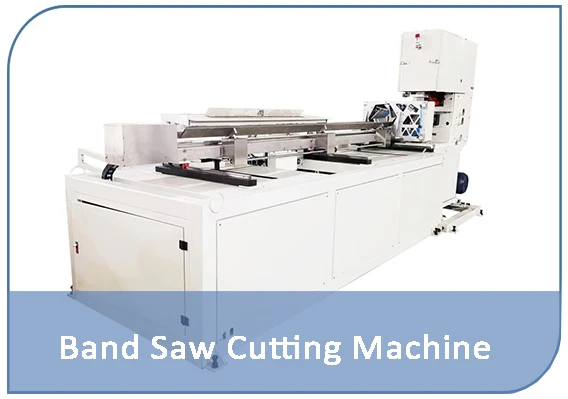

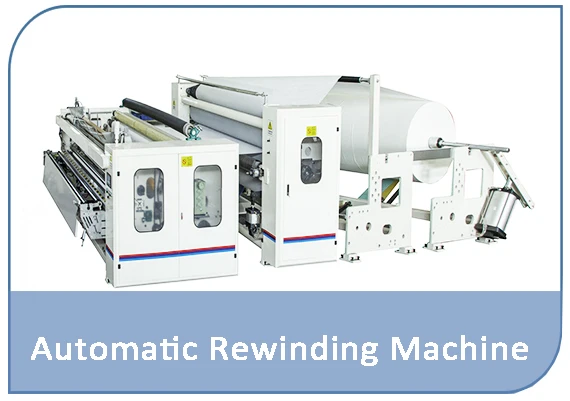

1 . Wallboard Type Rewinding Machine 2 . Automatic Band Saw Cutting Machine 3 . Automatic Shrinking Machine
If you want to see the independent details, please submit the pictures.
7.5KW 200m/Min Toilet Tissue Making Machine Air Shaft 3HP
7.5KW 200m/Min Toilet Tissue Making Machine Air Shaft 3HP
7.5KW 200m/Min Toilet Tissue Making Machine Air Shaft 3HP
Automatic Cutting Machine

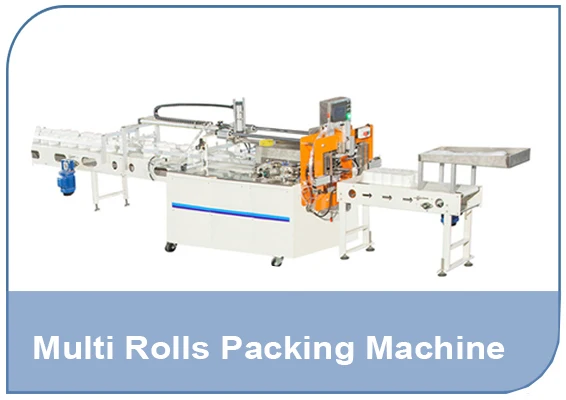

Semi Automatic Multi Rolls Packing Machine
Machine speed:
40cut/min
Machine speed:
12 bags/min
Outer Dia.of paper roll:
150~300mm
Packing style
Single layer or double layer
Slitting Length
90-250mm
Number of packing
4-6-8-10-12-24
Power Supply:
15kw

Voltage
220V 50HZ 1Phase
Required voltage:
380V 50HZ
The raw material
The plastic bag


Specification

Model

2900

Raw Material Width(mm)

2850

Speed

400-500m/min

Finished products diameter(mm)

diameter 1300

Slitting Width(mm)

adjustable

Finished products core Diameter(mm)

76.2(Please specify other specifications)

Unwinding Unit

1-3 layer(Can be appointed)

Base paper core shaft

Air-shaft

Rewinding System

Pneumatic timing rewinder

Slitting System

Automatic slitting control

Discharging Unit

Automatic discharging

Edge Cutting Unit

Vacuum suction edge cutting 1.5 KW

Power

Frequency conversion speed regulate 11KW

Double embossing frequency conversion speed regulate 15KW

Pneumatic system

3HP air compressor, min. pressure 5kg/cm2pa ( provide by user)

Dimensions(L x W x H)(mm)

8500X4000X2100

Weight

5000KG



Functions and Features

1 . Synchronous belt transmission, make it stable-running and less noise even though at high speed operation.

2 . Adopt the widen belt on back-stand to increase the friction when feeding paper.

3 . Equipped with newly fasten unit, making it is convenient to adjust the raw material.

4 . With the function of pneumatic paper loading, edge vacuum suction.

5 . Automatic finished roll discharging, Solve the deformation caused by falls paper phenomenon, save the labor force. (Optional)

6 . Easy operation, the finished products have good winding profiles and clean cutter.

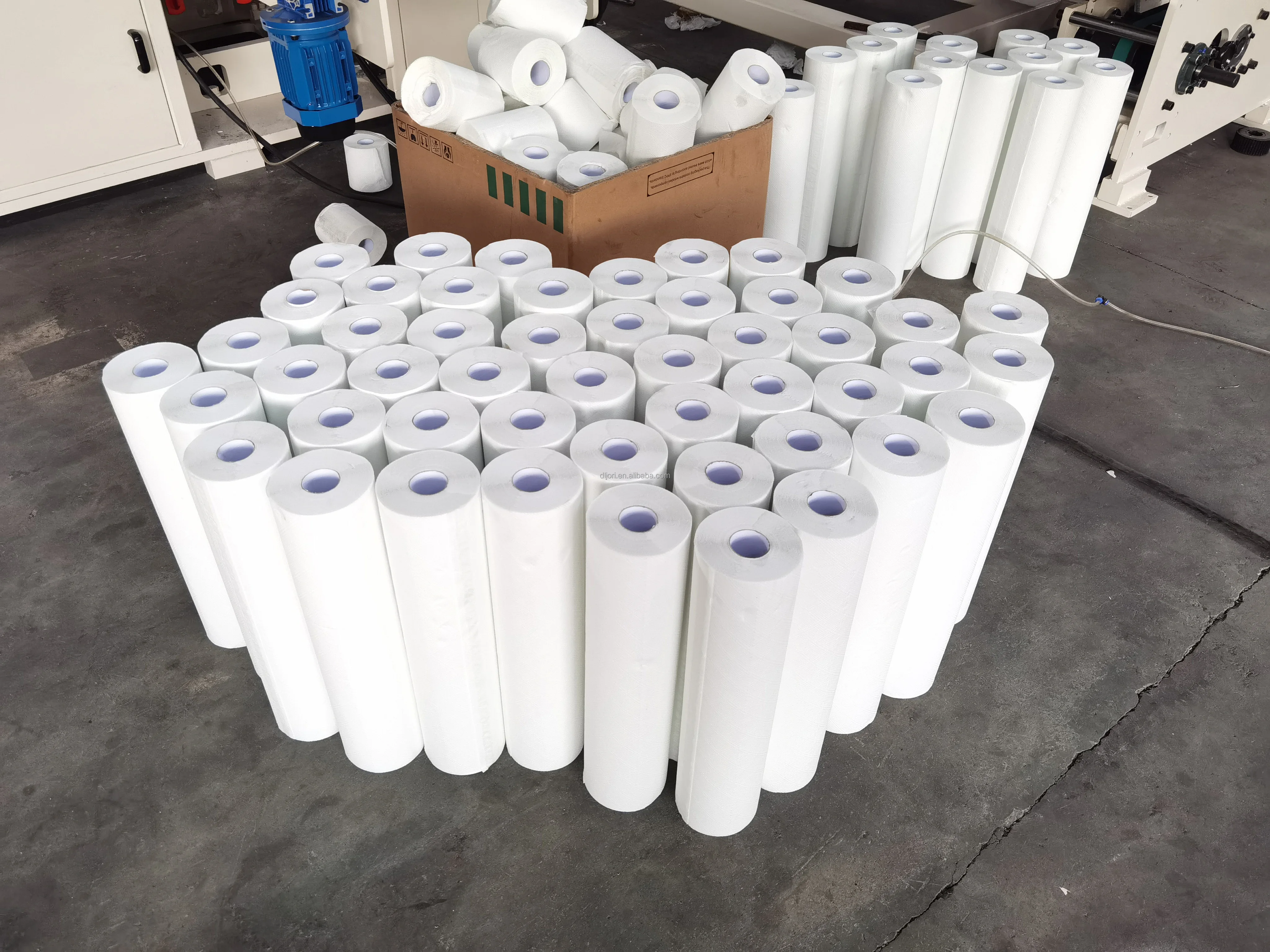

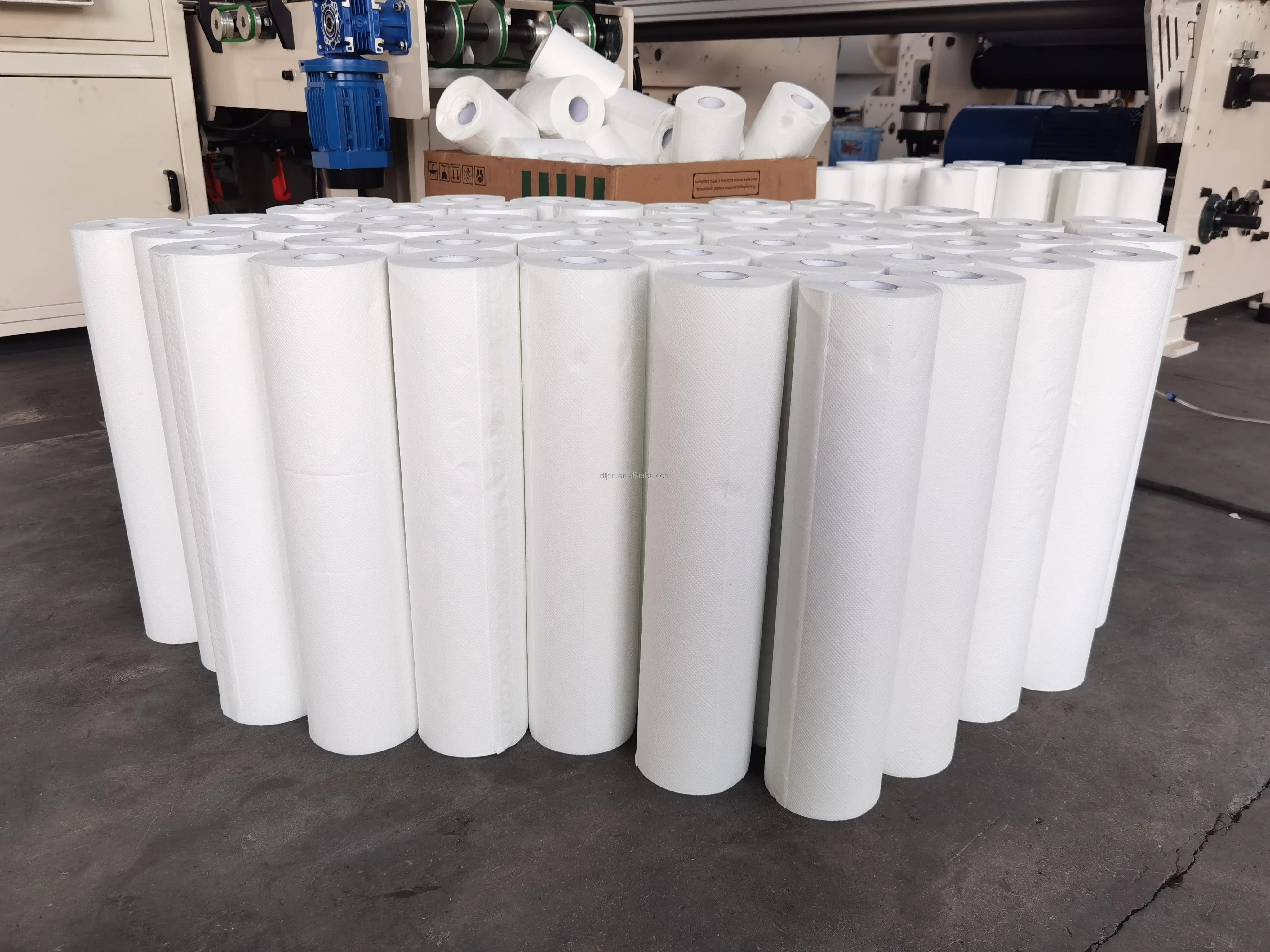

Finished Products :
7.5KW 200m/Min Toilet Tissue Making Machine Air Shaft 3HP
7.5KW 200m/Min Toilet Tissue Making Machine Air Shaft 3HP
